Tile Fix-AT
Download brochureTILEFIX -AT a Polymer Modified Cement Based adhesive designed for Tiles from 3 mm to 10 mm. Suitable for all types of Ceramic, Vitrified, PVT, GVT, Marble, Granit. All types of stones. It sets to a hard durable and water-resistant finish, making it ideal for both interior and exterior applications.
Bonding the following Types of Tiles
- Ceramic
- Vitrified
- Earthware
- Glazed
- Porcelin
- Stoneware
- Terrazzo
- Unglazed
- Thin and large tiles
Product Declaration
- C2T according to EN 12004-1
- C2T according to ISO 13007-1
- Tensile adhesion strength test after freeze-thaw cycles not conducted due to tropical climatic conditions.
Chemical Base
Portland Cement selected aggregates, water retention additives, re-dispersible polymer.
Tensile Adhesion Strength
| Initial/dry condition | ≥1.0 N/mm2 |
| After water immersion/wet condition | ≥1.0 N/mm2 |
| After heat aging | ≥1.0 N/mm2 |
| After+20 minutes, open time | ≥0.5 N/mm2 |
Slip Resistance
| ≤0.5 mm | (EN 12004-2/ISO 13007-2) |
Mixing Ratio
| Packing | Water to powder ratio by weight |
| 20 Kg | 0.25-0.28 |
| 40 Kg | 0.25-0.28 |
Quantity of water Per bag
| 20 Kg | 6.25-7.00 L |
| 40 Kg | 12.50-14.00 L |
Fresh Mortar Density
| 1.7± 0.2Kg/L (+27°C) | (EN/SO 2811-1) |
Layer Thickness
10 mm max.
Ambient Air Temperature
+5°C min/+35°C max.
Substrate Temperature
+5°C min/+35°C max.
Mature Time
15 Minutes
Pot Life
≥ 180 Minutes (100 g mass +27°C)
Open Time
>10 Minutes (EN 12004-2/ISO 13007-2)
Adjustability Time
8 Minutes
Applied Product ready to use
| Use | Waiting Time |
| Grouting Floor/Walkability | 24-36 Hours |
| Grouting Walls | 4-6 Hours |
| Full Traffic | 14 Days |
Value determined at laboratory conditions:23°C ± 2°C, RH 50% ± 5%. Higher temperature will reduce the indicated waiting time, Lower temperature increase waiting time.
Important
Perfect from adverse weather conditions such as extremely high or low (Freezing) temperature, rain for at least 12-24 hours from application.
Consumption
Consumption is dependent on the substrate surface profile, roughness and application techniques As a guide for a single adhesive layer.
| Size of Tiles | Notched Trowel Size | Powder Consumption |
| Small | 6 mm | 4.0–4.5 kg/m2 |
| Medium | 8 mm | 5.4–6.0 kg/m2 |
| Large | 10 mm | 7.5–8.0 kg/m2 |
Coverage
| Pack | Area Covered |
| 20 kg | 34–40 sqft for 3 mm thickness |
| 40 kg | 70–80 sqft for 3 mm thickness |
Cleaning of Tools
Clean all tools and application equipment with water immediately after use. Hardened/cured material can only be removed mechanically.
Mixing
- Pour the recommended amount of clean normal water into a suitable, clean mixing container
- Slowly add the powder to the water and then mix thoroughly using a low speed (< 500 rpm.) drill mixer until the material is fully mixed and lump free. Avoid entraining air into the mix by over mixing
- Allow the product to mature for 3-5 minutes before remixing for 30 seconds. The finished mix has a creamy consistency uniformly colored and is easy to apply and spread.
The product must be stored in original unopened, and undamaged sealed packaging in dry conditions at temperature between +5°c and +35°c.
18 months from date of production
Important
Avoid application in direct sunlight and/or strong wind / draught.

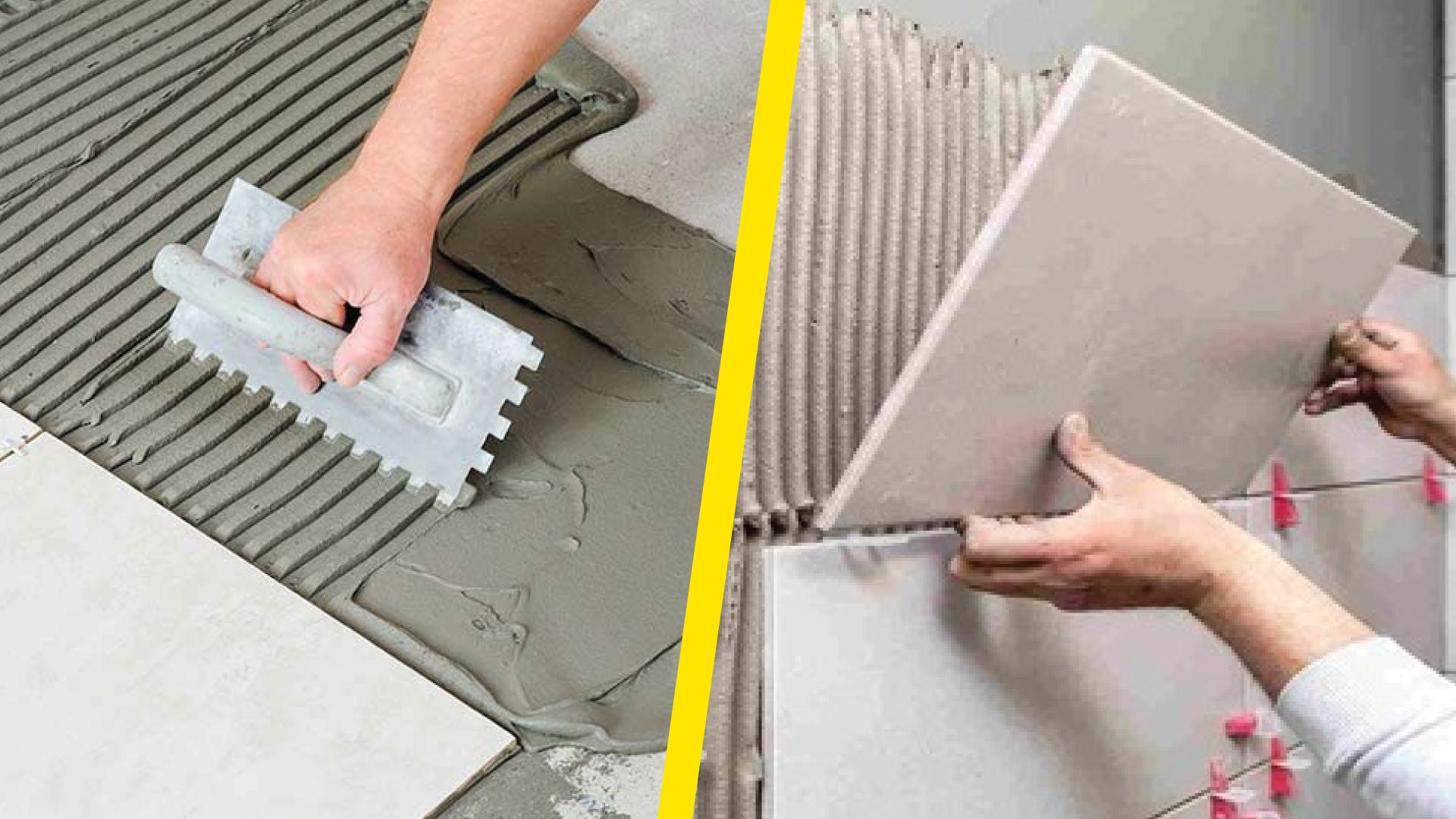

- TILEFIX-AT is applied using a suitable square notched trowel. Apply adhesive to the prepared fixing surface with the appropriate trowel and comb to the required bed thickness. Coverage on the back of the tiles should be 100 %.
- Tiling must be carried out on freshly applied adhesive, exerting adequate pressure to ensure complete and uniform contact with the adhesive for optimum bond.
- If a skin forms on the surface of the adhesive, immediately remove the adhesive layer with the trowel, discard material and apply a fresh layer of Tile Fix-WT adhesive.
- Adjust tiles if required.
- Clean off surplus adhesive from the tile face and between the tile joints before the adhesive has dried.
- After the required waiting time apply the appropriate grout into the tile joints.
- Tile-fix WT is ideal for laying absorbent ceramic and vitrified tiles up to 900 cm2 (e.g. 30 × 30 cm), for indoor application only. Tiles > 900 cm2 (e.g. 30 × 30 cm), the double spreading (buttering) technique is always recommended.
