Tile Shield (Epoxy Tile Grout)

Tile Shield Epoxy Tile Grout is a premium, high-performance, two-component, resin-based epoxy grout specifically designed for use in both residential and commercial tile installations. It provides outstanding protection against stains, moisture, chemicals, Acid and dirt, making it ideal for high-traffic areas, wet spaces, and environments exposed to heavy-duty use.

Key Features

  • High Strength and Durability: Offers superior bond strength, ensuring long-lasting performance.
  • Waterproof and Stain-Resistant: Perfect for use in high-moisture areas like kitchens, bathrooms, and pools.
  • Chemical Resistant: Resists a wide range of chemicals and cleaning agents, maintaining grout appearance and integrity.
  • Easy to Clean: The smooth surface resists dirt, stains, and grime buildup, making cleaning effortless.
  • Flexible and Versatile: Suitable for use with ceramic, porcelain, stones and other types of tiles.
  • Non-Shrink and Non-Cracking: Ensures consistent joint integrity even under extreme conditions.

Preparation and Application Instructions

1.  Surface Preparation

  • Ensure that the surface to be grouted is clean, dry, and free of any contaminants, such as dirt, dust, grease, or old adhesive residues.
  • Remove any excess water or moisture from the substrate. Ensure the joints are clean and free from debris. Use a vacuum or a brush to clear the grout joints.

2. Mixing

  • Mix Component A (epoxy resin) and Component B (hardener) in the correct ratio (as indicated on the packaging) until a uniform color and consistency is achieved.
  • Ensure the mixture is free from lumps and thoroughly blended for optimal performance.
  • Mix only the amount of grout that can be applied within the pot life (30-45 minutes).

3. Application

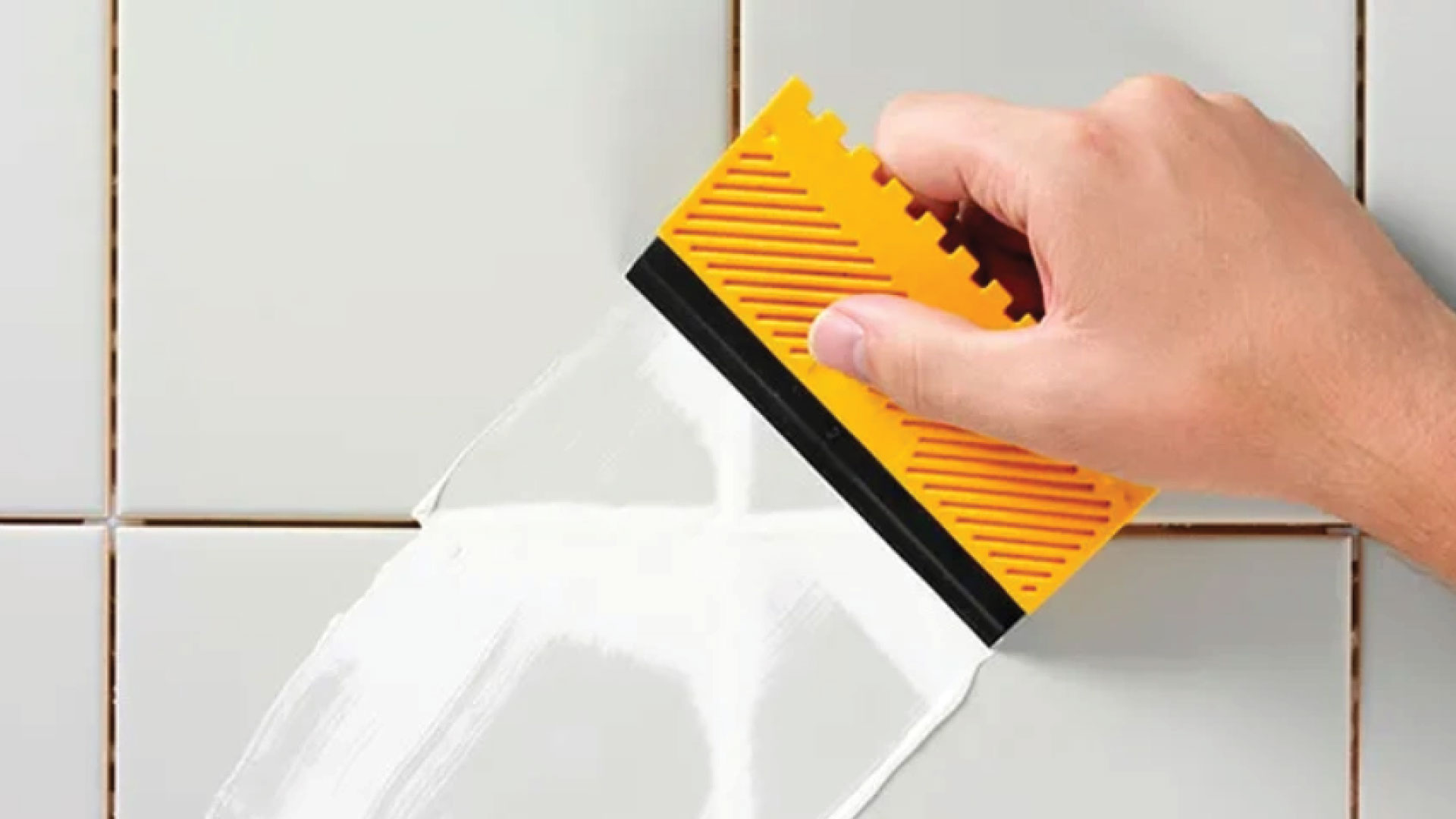

  • Use a rubber float or grout applicator to apply the grout into the joints, pressing firmly to ensure full joint coverage.
  • Remove excess grout using the float at a 45° angle to avoid disturbing the joints.
  • Allow the grout to set for 15-30 minutes before cleaning excess residual with a damp sponge.
  • Clean the surface with a damp sponge, rinsing frequently to ensure the surface is smooth and free of grout haze.

4. Curing

  • Allow the grout to cure for a minimum of 24 hours before subjecting it to any traffic or water exposure.
  • Full curing time may extend up to 48 hours, depending on the ambient temperature and humidity.

Health and Safety

Precautionary Statements

  • Causes serious eye irritation.
  • May cause an allergic skin reaction.
  • Keep out of reach of children.
  • In case of contact with skin or eyes, rinse immediately with plenty of water for at least 15 minutes and seek medical attention if irritation persists.
  • Wear protective gloves, protective clothing, and eye protection.

First Aid

  • Skin Contact: Wash thoroughly with soap and water.
  • Eye Contact: Rinse immediately with plenty of water and seek medical attention.
  • Inhalation: Move to fresh air. Seek medical attention if symptoms persist.
Property Values
Composition Two-component (resin Colour and hardener)
Color Available in a range of colors (custom colours on request)
Density 1.8 – 2.0 g/cm³
Pot Life 30-45 minutes at 23°C (73°F)
Working Time 45-60 minutes at 23°C (73°F)
Curing Time 24-48 hours (depending on ambient conditions)
Tensile Strength 10-12 MPa
Compressive Strength 40-50 MPa
Water Absorption < 0.1%
Chemical Resistance Excellent resistance to acids, alkalis, & most solvents
Temperature Resistance -20°C to 80°C (-4°F to 176°F)
Shelf Life 18 months (when stored in unopened containers in a cool, dry place
  • Storage Temperature: Store in a cool, dry place between 5°C and 30°C (41°F – 86°F).
  • Shelf Life: 18 months from the date of manufacture when stored properly in unopened containers.
  • Handling: Wear protective gloves, goggles, and clothing when handling the product to avoid skin and eye irritation.
  • Clean-up: Clean tools immediately after use with a suitable solvent, such as isopropyl alcohol or acetone.
